Product name:

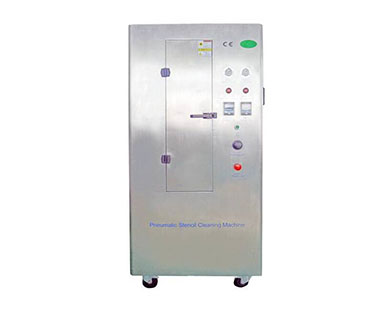

Steel Mesh Cleaning Machine B-CW-750/B-CW-760

number:

B-CW-750

One. Application fields and acteristics of steel mesh cleaning machine：

1. Suitable for cleaning solder paste\red glue screen and some PCB board debris;

2. Using compressed air as energy source, it is safe, and there is no fire hazard;

3. The cleaning fluid is filtered and recycled, with low operating cost and low consumption;

4. Prepare spray pressure adjustment function to adjust the pressure of different cleaning objects;

5. The spray pressure and the air source pressure of the diaphragm pump can be monitored and humanized identification;

6.The whole machine is made of stainless steel, acid/alkaline resistance, and the body is sturdy and durable.

Two. Parameters of all-air source steel mesh cleaning machine：

Project Introduction	Technical Parameters	Remarks
Dimensions	950MM（L）800（W）1680（H）
Machine net weight	approximately 200KG
Cleaning fluid capacity	42L（maximum）	Optimal cleaning usage：22~35L
Cleaning time	1—3minute	Some changes according to different product conditions
Drying time	1—2 minute
Cleaning method	Complementary nozzle 360°rotating spray cleaning and air compression drying
Filter method	Three-stage four-channel filtration：10UM \ 0.45UM
way to control	One-button operation, automatic cleaning and drying process
Air supply	0．45Mpa~0.7Mpa	Air consumption:300_550L/MIN
Adapt to the screen size	maximum 750MM(L)750MM(W)40(H)	Larger screen can be customized according to customer requirements
