Product name:

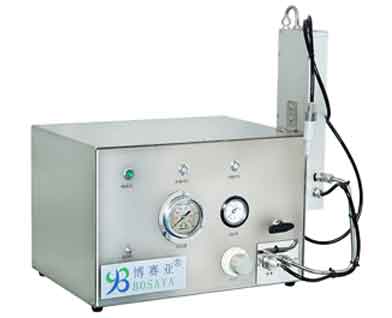

CO2 CleaningBSY-180

number:

BSY-180

One、Major function：

The equipment jet dry ice particles to the cleaning surface conflict through high pressure air, which is mainly used for precision cleaning of small parts; The mixed compressed air is cleaned to make the cleaned parts dry and clean.

Two、Characteristic：

1、Environment friendly dry cleaning method
2、Secondary wastewater and chemicals are the least
3、Diverse cleaning objects
4、Matrix non-invasive cleaning
5、Non hygroscopic and harmless chemicals
6、CE certification of the whole electrical equipment, the program can be written and adjusted according to the operation requirements
7、Compressed air filter is provided in front of the main engine to ensure the air cleanliness involved in cleaning

8、The stainless steel body of the whole machine is rust and corrosion proof, pollution-free and easy to maintain

Three、Technical parameters of equipment

Appearance size	445mm（L）×365mm（W）×470mm（H）
Width of cleaning surface	Customizable (face width≤100mm）
Cleaning capacity	Optical mold residue, glass oil stain,PCBBurr，PCBrosin flux，PCBOxidation of gold layer
Cleaning accuracy	clean0.5μm And aboveParticlegrain；Cleaning yield98%above
Cleaning method	High speed dry ice particles+compressed air
CO2Connection diameter	1/4braided hose-G5/8Internal thread
CO2supply	liquid stateCO2,pressure＞800PSI；flow＞100g/Min；purity＞99.5%
CO2Consumption	0-20g/Min
Inlet diameter of air source	Ø12mmOutside diameter hose
Gas supply	0.45-0.7Mpa；Filtration accuracy：0.01μm
Gas consumption	100-300L/Min
Power supply	AC220V；50Hz
Total power	300w
Power consumption	When cleaning200w; Standby time：10Kw
Net weight of machine	约18Kg
